Hydraulic brake hose for hydraulic brake system of vehicles

We not only provide air brake hose but also supply hydraulic brake hose for hydraulic brake systems. The products find applications in all kinds of automobiles and motorcycles to transfer hydraulic power. They meet or exceed the standard of SAE J1401 and are compatible with the brake fluid DOT3, DOT4, DOT4+.

Material of the construction:
The tube is made of EPDM. It is perfectly resist to oil, heat and permeation of water. The reinforcement is made of high strength polyester fiber treated by special resin. The cover is also made of EPDM. The middle layer is viscosity-strengthen rubber between reinforcements to provide high dynamic capability.

Advantages and benefits:
Excellent resistance of heat, ozone and abrasion, low volume expansion, high working temperature of -55°C to +125°C. It has good performance of excellent flexibility, bursting resistance, high tensile strength and reliable braking effects.

Specifications:

ID OD TEST PRESSURE BURST PRESSURE W/A L/B
Inch mm mm BAR PSI BAR PSI gr/m.t. m.t.
1/8 3.2 10.5 276 4000 490 7100 91 +10
3/16 5 13 276 4000 345 5000 129 +10

Super low expansion hydraulic brake hose

Hydraulic brake hose with two braid PVA reinforcement
Super low expansion hydraulic brake hose

This kind of hydraulic hose has super low expansion hose construction, improves brake caliper reaction time, gives good pedal feel, and reduces the stopping distance. It meets SAE J1401 and FMVSS-106. The working temperature ranges -50° C to 121°C.

Construction: tube is new EPDM/CIIR blend tube compound, the reinforcement is made of braided PVA, and the cover is EPDM cover compound.

Specifications:

Size Nominal ID ID OD Conc. Max Weight
MIN MAX MIN MAX
1/8” 0.135in 0.131in 0.140in 0.394in 0.409in 0.015in 0.61lbs/ft.
3.4mm 3.33mm 3.56mm 10.0mm 10.4mm 0.381mm 0.088kg/m

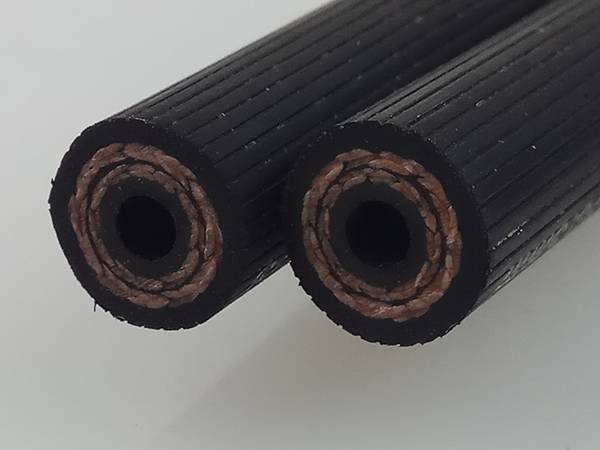

The cross-section of black standard hydraulic brake hose
Hydraulic brake hose cross-section

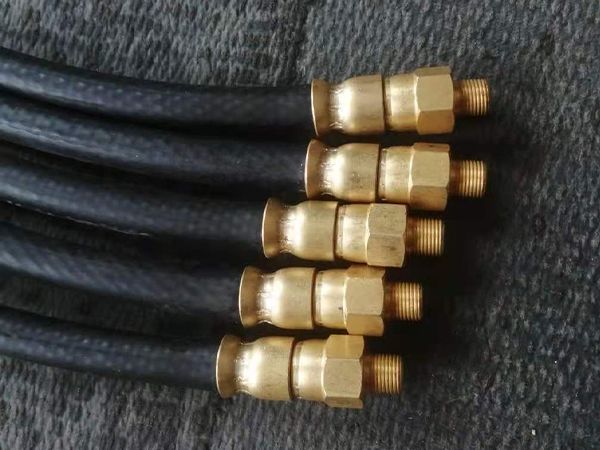

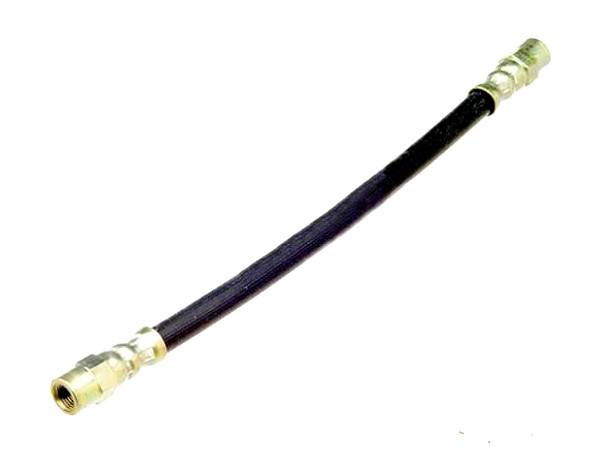

Hydraulic brake hose

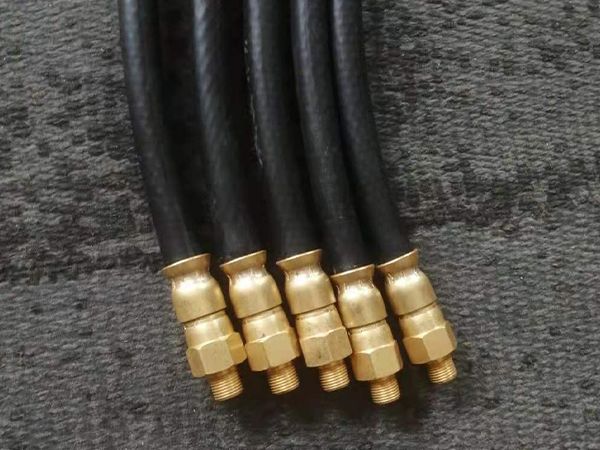

Hydraulic brake hose
