Rubber brake hose with two PVA reinforcement

According to the materials brake hoses can be divided into rubber brake hose and nylon brake hose. In the following we intend to introduce rubber brake hose to you.

Rubber brake hose construction
Inner construction of the rubber brake hose

Technical specifications:
Hose ID: 3.3mm - 3.5mm
Hose OD: 10.3mm - 10.7mm
Minimum burst pressure is 900 psi.
More colors are available, such as red, yellow, blue, and black.
It is accorded with SAE J1401 specifications and compatible with DOT3, DOT4 and most non-petroleum based brake fluids including silicone.
Temperature ranges: -40°F to 200°F(-40°C to 93°C)

Part No. ID (inch) OD (inch) W.P. (psi) Length (ft.)
RAB-6-50 3/8 3/4 225 50
RAB-6-100 3/8 3/4 225 100
RAB-6-Reel 3/8 3/4 225 250
RAB-8-50 1/2 7/8 225 50
RAB-8-100 1/2 7/8 225 100
RAB-8-Reel 1/2 7/8 225 250

Features: excellent moisture resistance, superior weather resistant cover material, high strength with two braid PVA reinforcement, resistant to gasoline, diesel fuel, oil and commonly used road and cleaning chemicals.

Accessories
There are some accessories for rubber brake hose when using it.

The photo of rubber brake hose fitting of hose protector spring Two black fitting shoulder clips Screws used with rubber brake hose

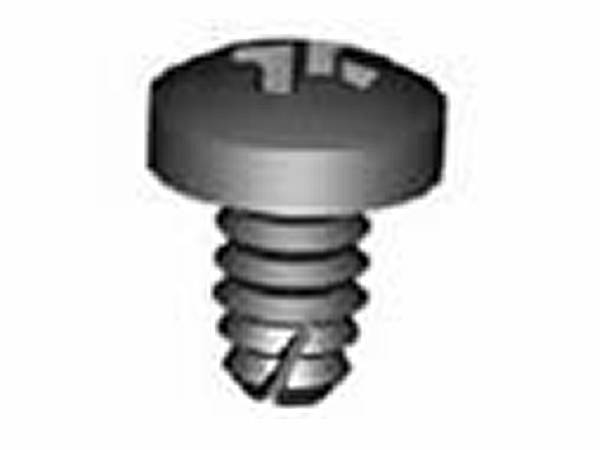

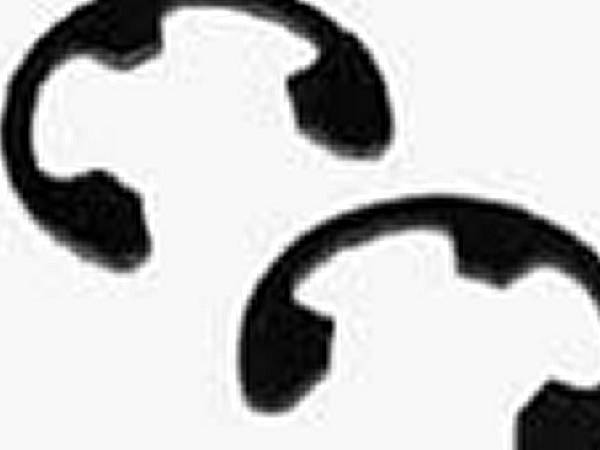

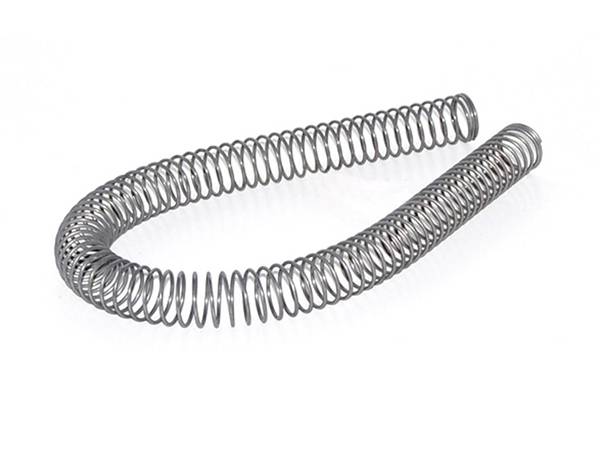

Hose protector spring Fitting Shoulder Clips Bracket Retaining Screws



The thick insulating hose The thick insulating hose Screws used with rubber brake hose

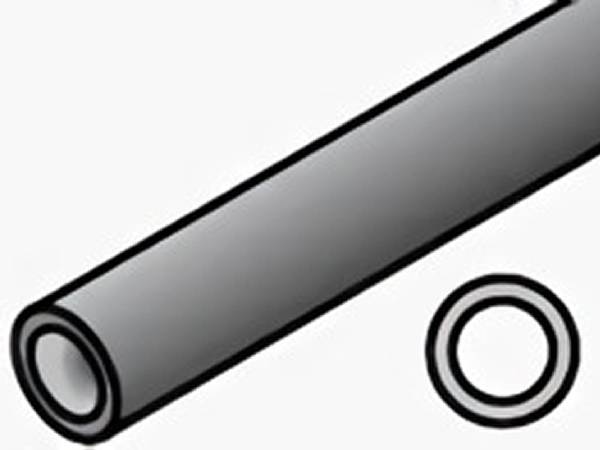

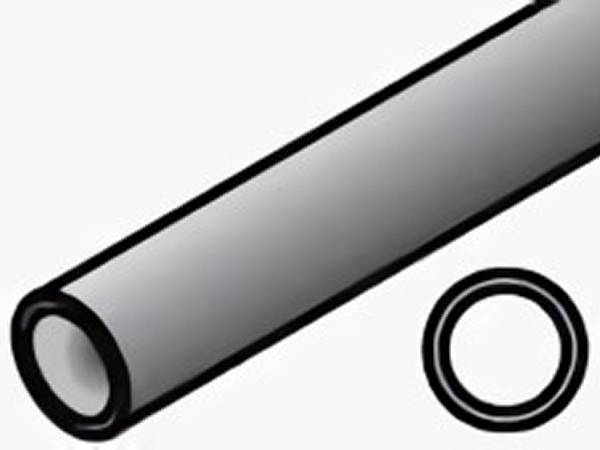

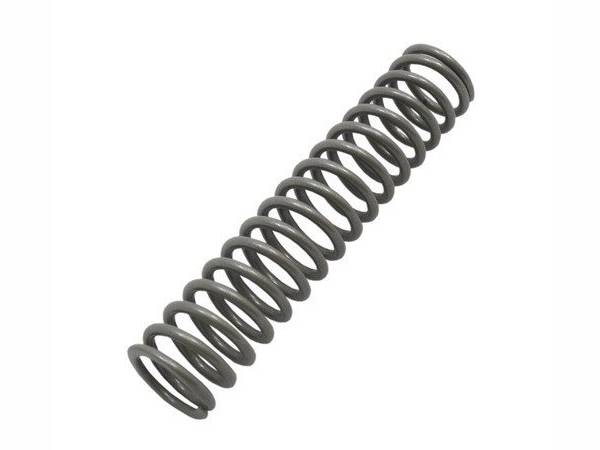

Insulating Hose Thick Insulating Hose Thin Plastic Protector Spring

You can contact us for more information and we will answer you as soon as possible.

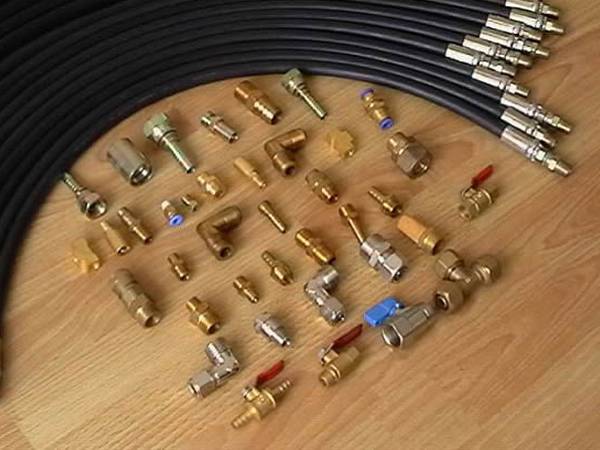

Rubber brake hoses in black and various of fittings
Rubber brake hoses and fittings

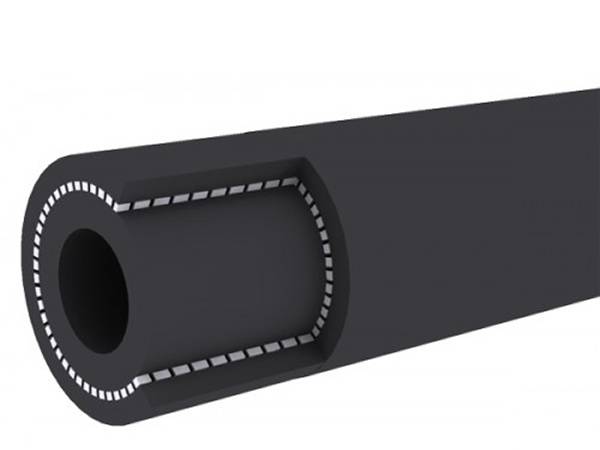

The inner construction of black rubber brake hose
Rubber brake hose in a black cover surface
